● Up to 1.25Gb/s bi-directional data links
● Hot-pluggable SFP footprint
● TX Disable and RX Los/without Los function
● Fully metallic enclosure for low EMI
● Low power dissipation (1.05 W typical)
● Compact RJ-45 connector assembly
● Access to physical layer IC via 2-wire serial bus
● Operating case temperature range of 0 °C to +70 °C (Commercial) or -20°C to +85°C (Extend)

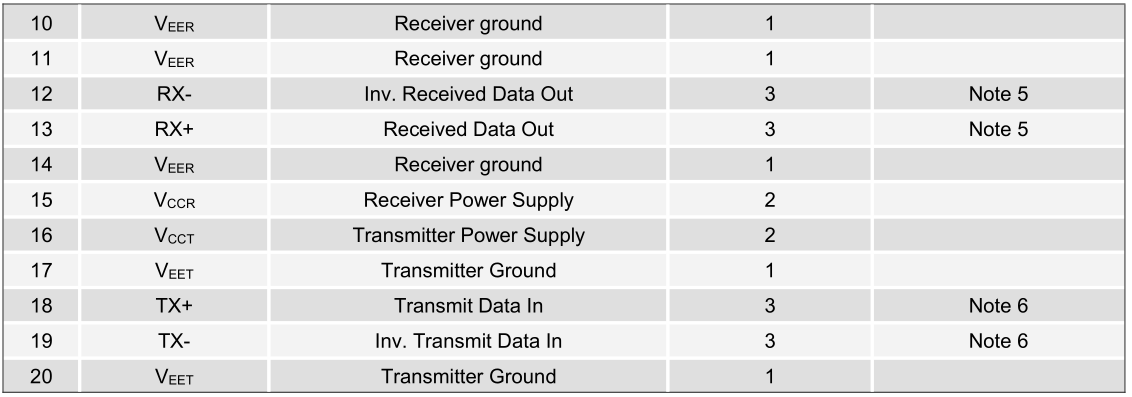

Pin Descriptions

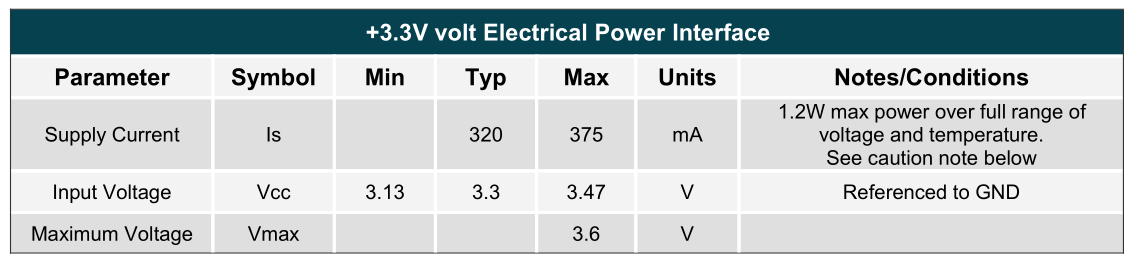

+3.3V Volt Electrical Power Interface

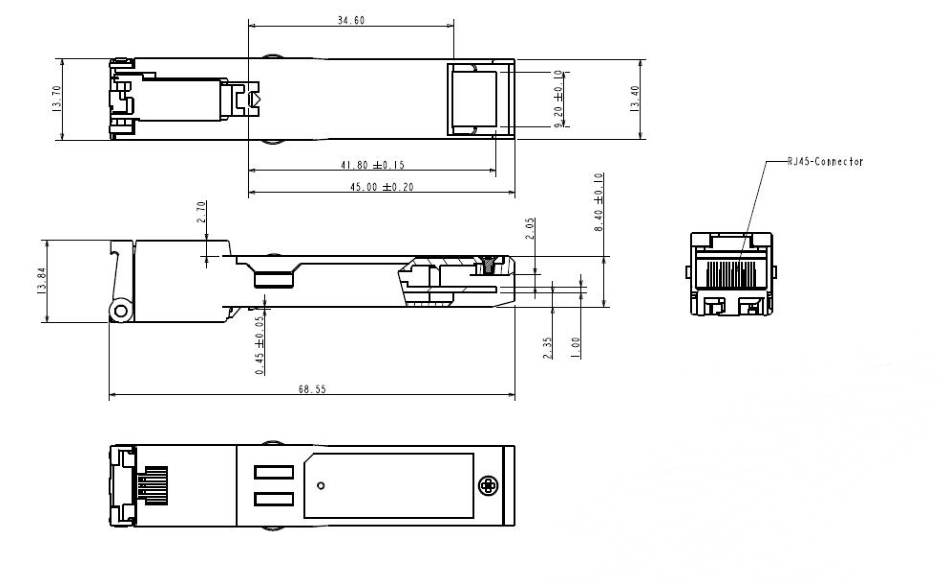

Mechanical Specifications
|
設(shè)備名稱 |
設(shè)備信息 |
|

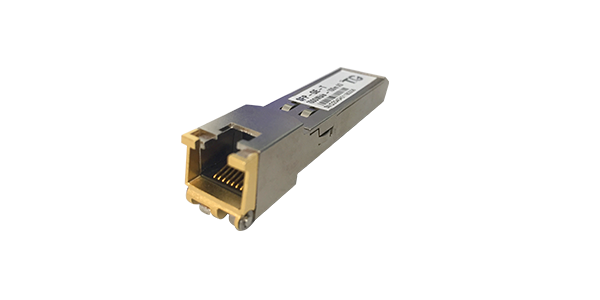

SFP-GE-T |
千兆SFP電口模塊-(RJ45) |
